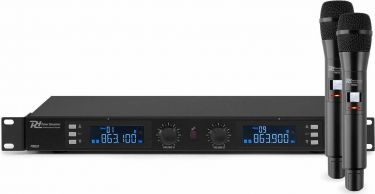

The Power Dynamics PD632H is a powerful 2x 20-Channel UHF wireless system that delivers superior audio transmission, with clarity and definition. The receiver is equipped with a dynamic LCD display, volume control and balanced XLR output. Suitable for vocals, presentations, training and other hands-free activities. - 2x Handheld microphone with mute function
- 2x 20 Selectable UHF channels
- IR data transmission for channel selection
- 2x balanced XLR outputs and a single mix unbalanced 6.3mm output
- CPU controlled
- PLL oscillator
- Transmitters with display showing the frequency and battery low indication
- Equipped with dynamic LCD
- Supplied in aluminium carrying case
- Suitable for 19 rack (supplied brackets)
| Product colour | Black | | Output connections | XLR (3-pin) | | Microphone channels | 20 channels | | Frequency | 863.000 - 865.000 MHz | | Frequency response | 60 - 18.000 Hz | | Frequency stability | 0.0015% | | RF output | <10mW | | Signal-to-noise ratio | >97dB | | THD | <1% | | Batteries | 3V (2x AA) | | Power supply | 100-240VAC 50/60Hz (12V Adapter) | | Dimensions: Receiver | 220 x 420 x 44mm | | Dimensions: Microphone | 51 x 250mm | | Weight (kg) | 5,50 | | Weight: Receiver | 1.460 | | Weight: Microphone | 0.4 |
