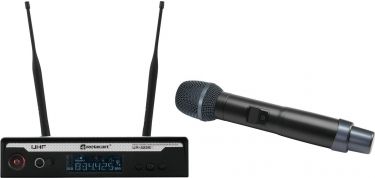

 | Varegrupper |  | |  | Producenter | | | | | | Information | | | | | | | | Relacart Set UR-222S Condensator Handmic 10A15D46 | 20000343
Leveringstid: 4 til 8 hverdage. | Butikkens adresse og åbningstid er: | DiscoWorld
Møllehaven 9
4040 Jyllinge - vis på kort | Butik og Telefon
Tirsdag, Onsdag og Fredag | 10.00 til 17.30 | Lager og vareudlevering
Mandag, tirsdag, onsdag
torsdag og fredag | 09:00 til 17:30 | |
| |
| | Har du brug for hjælp eller rådgivning inden du bestiller? | | Så ring gerne til vores venlige og kompetente sælger Christian Høegh direkte på hans mobil 20832425, Alle ugens 7 dage fra 09:00 til 20:00 | |
|
| |
| |
| | - 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Parallel operation of up to 9 systems is possible without any interference
- Pilot frequency squelch technology delete wireless RF interference
- Automatic frequency scan (AFS) finds interference-free channels
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- 2 detachable BNC antennas allow for use with the R-14D antenna divider
- Multicolor LCD display
- UHF 863 - 865 MHz License-free and approved in Europe
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- Operating range up to 80m
- Desktop console housing
- (19) 48.3 cm rack installation possible 1 U
- Charge status indicator
- 1 x receiver, 1 x external mains adapter, 2 x antenna, 1 x jack cable, 3 x mounting bracket, 8 x screw, 1 x user manual, 1 x declaration of conformity, 1 x bag
- Condenser hand-held microphone with UHF pilot tone technology (PLL)
- Ergonomic aluminum alloy housing, applicable for touring
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- RF output power Hi/Low adjustable
- Gain level Hi/Mid/Low adjustable
- Capsule M-C36
- Directly compatible with Shure's SM58 capsule
- Polar pattern: Cardioid
- OLED display
- Charge status indicator
- UHF 863 - 865 MHz License-free and approved in Europe
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- Operating range up to 80m
- 1 x microphone, 1 x user manual, 1 x declaration of conformity
| Weight: | 2,30 kg | | RELACART UR-222S 1-Channel UHF Receiver | | Type: | Receiver | | Power supply: | 100-240 V AC, 50/60 Hz
12 V DC 1 A | | Power consumption: | 3 W | | Power connection: | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) | | Number of channels: | 1 | | Frequency range: | 45 - 18000 Hz | | S/N ratio: | >105 dB | | THD: | <0,7 % at 1 kHz | | Display type: | Multicolor LCD display | | Display: | Charge status indicator , antenna A/B , RF signal level , AF audio level; frequency | | Control elements: | Groundlift selector, menu, navigation keys | | Connections: | Antenna via 2 x BNC (F) 8 V
Output: Microphone via 1 x 3-pin XLR (M) mounting version
Output: Microphone via 1 x 6.3 mm plug (unbal.) | | Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz | | Frequency selection: | 90 Switchable frequencies
In 10 groups with up to 10 preset frequencies each | | Modulation: | FM | | Frequency stability: | ± 0,005 % | | Range: | Range up to 80m | | Switching bandwidth: | 11 MHz | | Switch: | On/off switch | | Diversity: | Antenna diversity | | Material: | Metal | | Color: | Black | | Housing design: | Desktop console housing
(19") 48.3 cm rack installation possible 1 U | | Dimensions: | Width: 20 cm
Depth: 26 cm
Height: 4,4 cm | | Weight: | 1,95 kg | | RELACART UH-222C Microphone | | Type: | Hand-held transmitter | | Power supply: | 3 V DC | | Capsule type: | Condenser | | Polar pattern: | Cardioid | | Battery: | 2 x Mignon (AA) (not included) | | Frequency range: | 100 - 18000 Hz | | Sensitivity: | -52 dB | | Max. SPL: | 145 dB | | Display type: | OLED display | | Display: | Charge status indicator , frequency , Chanal | | Control elements: | Gain-switch (high-mid-low), Transmitter power switch (high-low) | | RF power output: | 10 mW | | Switch: | On/off/mute switch | | Material: | Aluminum | | Dimensions: | Length: 25,5 cm
Diameter: Ø 5,2 cm | | Weight: | 340 g |
| | |
| | |
