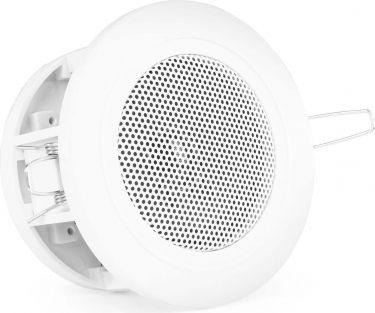

The CSBA3L is a ultra-compact low impedance speaker, designed to fit in almost any location especially where space is limited. It only needs a hole 85 mm in diameter for its recessed installation, with fast anchorage to the ceiling by means of an automatic spring mechanism. The CSBA3L is suitable for a wide variety of public address, background audio and sound reinforcement applications and has a 120° conical coverage pattern to provide excellent clarity and intelligibility. - Ultra-compact ceiling speaker
- 8 Ohm operation
- Easy-connect cable connection with screw mounting
- Spring mechanism for easy installation
- Supplied per piece
- Colour: White
| Speaker type | Passive (non-amplified) | | Product colour | White | | Output power: Max | 30W | | Diameter woofer | 3" | | Magnet type | Ferrite | | Impedance | 8 Ohm | | Frequency response | 150Hz - 15.000Hz | | SPL @ 1W/1m | 85dB | | IP rating | N/A | | Mounting diameter | 85mm | | Mounting depth | 73mm | | Dimensions (L x W x H) | 99 x 80mm | | Weight (kg) | 0,40 |
