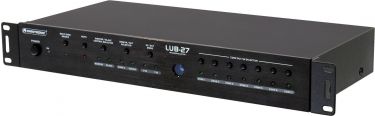

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | | | Omnitronic LUB-27 Speaker Switch Box 10A23B38 | 10453007
Delivery time: 4-8 workdays. | Butikkens adresse og åbningstid er: | DiscoWorld
Møllehaven 9
4040 Jyllinge - vis på kort | Butik og Telefon
Tirsdag, Onsdag og Fredag | 10.00 til 17.30 | Lager og vareudlevering
Mandag, tirsdag, onsdag
torsdag og fredag | 09:00 til 17:30 | |
| |
| | Har du brug for hjælp eller rådgivning inden du bestiller? | | Så ring gerne til vores venlige og kompetente sælger Christian Høegh direkte på hans mobil 20832425, Alle ugens 7 dage fra 09:00 til 20:00 | |
|
| |
| |
| | Speaker/amplifier switch box with IR remote control Lautsprecher-/Verstärker-Umschaltbox mit IR-Fernbedienung - 7-channel switch box for speaker pairs or amplifiers
- Ideal for showrooms for comparing the performance of different speakers or amplifiers
- Operating mode 1: switching over on 7 speaker pairs to 2 stereo amplifiers with A/B selection
- Operating mode 2: switching over on 7 stereo amplifiers to 2 speaker pairs with A/B selection
- Multi-zone function also allows for freely combining the 7 speaker pairs in operating mode 1
- Parallel connection of 2 units for extension to 14 zones possible in operating mode 1, connection cables optional
- High-power audio signal transmission, power rating: 25 A per channel
- LED indicators for each status
- Automatic recall of last-used settings after switching on
- Optional extension IR receiver
- Rugged steel chassis with aluminum front panel
- Desktop console housing 2 U
- (19) 48.3 cm rack installation possible 2 U
- Control via IR remote control; Master/slave function
- Operating range up to 10m
- 1 x remote control, 1 x device, 1 x user manual, 2 x battery, 1 x speaker cable, 1 x power cord, 1 x external mains adapter, 1 x jack cable
| Power supply: | 100-240 V AC, 50/60 Hz
12 V 1,5 mA | | Power consumption: | Max. 15 W | | Output current: | Max. 2 x 25 A per channal | | Power connection: | Mains input via Coaxial power connector (M) mounting version power supply cord with Euro plug (provided) | | Control: | IR remote control; Master/slave function | | Zone output: | 7 switchable zones | | Control elements: | Power switch, source selector, Mute control | | Connections: | Zones via 7 x screw terminal
IR-Extension/receiver via 1 x 3.5 mm jack (stereo) | | Range: | Range up to 10m | | Material: | Metal | | Color: | Black | | Housing design: | Desktop console housing 2 U
(19") 48.3 cm rack installation possible 2 U | | Dimensions: | Width: 48,3 cm
Depth: 22 cm
Height: 8,9 cm | | Weight: | 3,80 kg | | Remote control | | Battery: | 2 x 1.5 V AAA Micro R03 zinc carbon included |

 | | | | |
