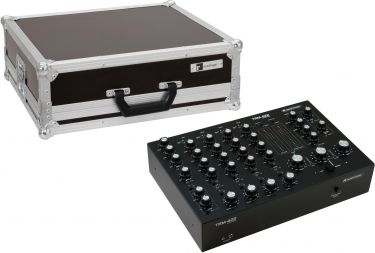

Omnitronic Set TRM-422 + Case

10B01B37

9.709,00DKK

Prisen er inkl. 25% dansk moms

Leveringstid: 4 til 8 hverdage.

Butikkens adresse og åbningstid er:

DiscoWorld
Møllehaven 9
4040 Jyllinge - vis på kort

Butik og Telefon Tirsdag, Onsdag og Fredag	10.00 til 17.30
Lager og vareudlevering Mandag, tirsdag, onsdag torsdag og fredag	09:00 til 17:30

Har du brug for hjælp eller rådgivning inden du bestiller?
Så ring gerne til vores venlige og kompetente sælger Christian Høegh direkte på hans mobil 20832425, Alle ugens 7 dage fra 09:00 til 20:00

3-band master frequency isolator with vintage ALPS potentiometers (Blue Velvet RK27)
Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
Filter section with HPF, BPF, LPF, resonance and sweep control for creative sound shaping
4 stereo input channels with gain control, clip LED, 3-way equalizer and phono/line switching
2 microphone input channels with gain control, 2-way equalizer on air switch
High-grade components ensure long life and excellent sound quality
16-digit stereo LED level meter, switchable between master and booth outputs
Booth output with separate 2-way equalizer and level control
PFL section with 16-digit stereo LED level meter, level control, PFL/master mix control and cue mix/split option
Fully assignable VCA crossfader with adjustable curve
2 effects send/return paths
Direct outputs for Timecode applications
Outputs: master and booth (XLR/RCA L/R), record (RCA L/R), master insert send/return (RCA L/R), FX in/out (stereo jack)
Desktop console housing
(19) 48.3 cm rack installation possible
1 x mixer, 1 x power cord, 2 x mounting bracket, 6 x screw, 8 x rCA cable, 1 x user manual
High-quality workmanship with birch multiplex 6,5 mm, dark brown, laminated
Interior with foam padding cover with foam padding
Removable cover
Aluminum profile frames 22mm with rounded edges
Rugged carrying handle
2 high-quality spring locks
Rubber feet
Branded hardware
Made in Europe
For further information about this product, please refer to the Data Sheet under Downloads

Weight:	10,39 kg
OMNITRONIC TRM-422 4-Channel Rotary Mixer
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	24 W
Protection class:	Protection class I
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:	20 - 20000 Hz Microphone 20 - 20000 Hz line 40 - 18000 Hz phono
S/N ratio:	>97,2 dB line >91,7 dB Microphone
THD:	Line <0,04 % at 1 kHz Phono <0,13 % at 1 kHz Microphone <0,008 % at 1 kHz
Gain:	Microphone 44 dB Line -16,5 dB to +8,5 dB Phono -48,5 dB to +23,5 dB
Isolators:	Master Gain:- ∞ bis +9 Low/mid 300 Hz, 18db/oct , Butterworth Mid/high 4000 Hz, 18db/oct , Butterworth
Crosstalk:	>-68 dB
Control elements:	Power switch, source selector, Crossfader, Crossfader selector switch, Crossfade curve switch; Cue mix split function, tone control
Status LED:	Power, master level meter, clip, CUE
Connections:	Input: line via 4 x stereo RCA Input: line/phono via 4 x stereo RCA Input: Microphone via 2 x 3-pin XLR Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version Output: headphones via 1 x 3.5 mm jack (stereo) mounting version Output: rec. via 1 x stereo RCA Output: booth via 2 x 3-pin XLR Output: booth via 1 x stereo RCA Output: master via 2 x 3-pin XLR Output: master via 1 x stereo RCA Output: AUX sends via 1 x 6.3 mm jack socket (stereo) mounting version Output: AUX returns via 1 x 6.3 mm jack socket (stereo) mounting version Output: Timecode via 4 x stereo RCA
Channels:	Input chanel: 4 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary, 3-band tone control EQ, source selector, gain control, CUE switch, FX routing switch, Crossfader selector switch, Microphon chanal: 2 x mono via XLR, channel control via Rotary dial, ON AIR switch, Master output: 2 x stereo via XLR, channel control via Rotary, Cue mix split function, Booth output: 2 x stereo via XLR, channel control via Rotary Rec. output: 1 x stereo via RCA Headphones output: 1 x stereo via Jack, channel control via Rotary dial
Max. level:	Output: +18 dBu
Material:	Metal
Housing design:	Desktop console housing (19") 48.3 cm rack installation possible
Dimensions:	Width: 41 cm Depth: 28,5 cm Height: 10,5 cm
Weight:	5,74 kg
ROADINGER Flightcase TRM-422
Maximum load:	25 kg
Removable covers:	1 pc/pcs
Aluminum profile frames:	22 mm
Carrying handle:	1 pc/pcs
Lock:	Spring lock: 2 pc/pcs
Transport aid:	Rubber feet
Use of brands:	Branded hardware
Material:	Birch multiplex, 6,5 mm
Color:	Dark brown, laminated
Device compartment:	41 cm x 27,5 cm x 10,5 cm
Dimensions:	Width: 48 cm Depth: 43 cm Height: 17,5 cm
Weight:	4,65 kg
