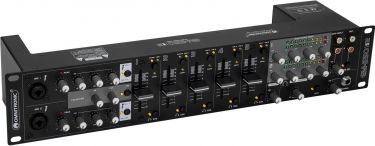

| | Multifunctional 5+2-channel installation mixer, black - 5 input channels with recessed gain controls on the rear panel, signal LED and smooth channel faders
- Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function
- 2 adjustable master outputs with 3-way equalizer and 10-digit stereo LED level meter
- (19) 48.3 cm rack installation 2 U
- 1 x mixer, 1 x user manual, 1 x power cord, 1 x rCA cable
| Power supply: | 230 V AC, 50 Hz | | Power consumption: | 9 W | | Protection class: | Protection class II | | Power connection: | Power supply cord with Euro plug (provided) | | Frequency range: | 20 - 20000 Hz | | S/N ratio: | >65 dB line/phono | | THD: | Line/phono <0,02 % at 1 kHz | | Gain: | Microphone 52 dB
Line 19 dB
Phono 54 dB | | Housing color: | Black | | Control elements: | Power switch, regular talkover, source selector | | Status LED: | Signal, master level meter, peak, chanal source; CUE, Talkover, ON AIR, Routing | | Connections: | Input: Microphone via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line/phono via 2 x stereo RCA
Input: line via 9 x stereo RCA
Output: master via 2 x 3-pin XLR
Output: master via 2 x stereo RCA
Output: headphones via 1 x 6.3-mm-jack (bal.)
Output: booth via stereo RCA
Output: rec. via 2 x stereo RCA | | Channels: | Input chanel: 2 x stereo with Line-Line/Phono switch via RCA, channel control via fader, gain control, source selector, CUE switch
Input chanel: 3 x stereo with Line-line switch via RCA, channel control via fader, gain control, source selector, CUE switch
Microphon chanal: 2 x mono via Combination socket (XLR/jack), channel control via Rotary dial, 3-band tone control EQ, ON AIR switch, Talkover switch,
Master output: 2 x stereo via XLR or RCA, channel control via Rotary dial, 3-band tone control EQ
Rec. output: 2 x stereo via RCA, NO MIC switch,
Headphones output: 1 x stereo via Jack, channel control via Rotary dial, Cue mix split function,
Booth output: 1 x mono + stereo via RCA, channel control via Rotary dial
Input chanel: 1 x stereo via RCA, channel control via Rotary dial | | Housing design: | (19") 48.3 cm rack installation 2 U | | Dimensions: | Width: 48,3 cm
Depth: 14,8 cm
Height: 8,9 cm | | Weight: | 3,10 kg |

  | | | | |
