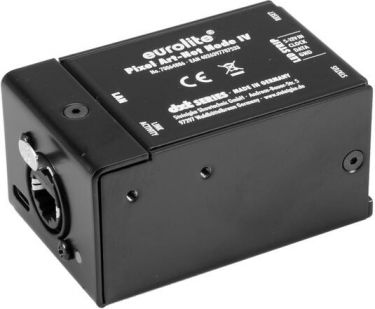

Eurolite DXT Pixel Art-Net Node IV

10B05D82

1.779,00DKK

Prisen er inkl. 25% dansk moms

Leveringstid: 4 til 8 hverdage.

Butikkens adresse og åbningstid er:

DiscoWorld
Møllehaven 9
4040 Jyllinge - vis på kort

Butik og Telefon Tirsdag, Onsdag og Fredag	10.00 til 17.30
Lager og vareudlevering Mandag, tirsdag, onsdag torsdag og fredag	09:00 til 17:30

Har du brug for hjælp eller rådgivning inden du bestiller?
Så ring gerne til vores venlige og kompetente sælger Christian Høegh direkte på hans mobil 20832425, Alle ugens 7 dage fra 09:00 til 20:00

Art-Net interface for control of 50000 digital LED channels

Can receive and process up to 2048 DMX channels
1 to 6 colors per pixel
Supports pixel groups (1 - 9999)
Control via ArtNet; sACN
Configuration with website or Art-Net
Useable for WS2801; WS2811, WS2812, SK6812; APA102 LED´s
Does not require a separate adapter - power supply is via LED strip (5-12 V)
Rugged metal housing
Desktop console housing
Made in Germany
The device can be connected via RJ-45 etherCON (F) mounting version to the PC in connection with f.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC)
Built with NEUTRIK connector

Power supply:	5-12 V DC
Pin configuration:	Pin1 (GND) / Pin2 (DATA) / Pin3 (CLOCK) / Pin4 (VIN)
Power consumption:	1 W
IP classification:	IP20
Power connection:	Mains input via 4-pin screw plug connector (M) mounting version
DMX channels:	Input 2048
Network connection:	Protocol: Ethernet TCP/IP via 1x RJ-45 etherCON (F) mounting version, 10 Mbit/s Standard: IEEE 802.3u
Control:	ArtNet; sACN
Control channels:	50000
Housing color:	Black
Status LED:	Signal, link
Connections:	Input: 1 x RJ-45 etherCON (F) mounting version Output: screw plug-in terminal
Use of brands:	Built with NEUTRIK connector
PC connect:	F.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC) via RJ-45 etherCON (F) mounting version
Housing design:	Desktop console housing
Dimensions:	Length: 7,8 cm Width: 5,0 cm Height: 4,2 cm
Weight:	250 g
