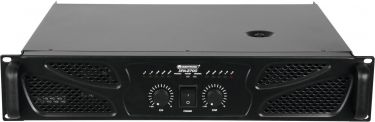

| | Class H PA amplifier with limiter, 2 x 1350 W RMS (4 ohms), 2 x 1080 W RMS (8 ohms) Stereo-PA-Verstärker mit Limiter, 2 x 1350 W / 4 Ohm, 2 x 1080 W / 8 Ohm - 3 operating modes can be selected (stereo, parallel or bridged)
- Input sensitivity adjustable
- 2 level controls
- Each channel with LED for activated protective circuit (protect) and output meter with clip LED
- Signal inputs via XLR or RCA connectors
- Speaker outputs via lockable speaker jacks and pairs of screw terminals
- Class H circuitry
- The device is cooled by cooling fan
- (19) 48.3 cm rack installation 2 U
- 1 x amplifier, 1 x user manual, 1 x power cord, 4 x foot, 4 x screw
| Power supply: | 230 V AC, 50 Hz | | Power consumption: | 700 W 1/8 power | | Output power: | 2 x 1350 W RMS (4 ohms)
2 x 1080 W RMS (8 ohms)
2700 W RMS bridged (8 ohms) | | Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) | | Frequency range: | 20 - 20000 Hz | | S/N ratio: | >100 dB | | THD: | <0,5 % at 1 kHz | | Cooling: | Cooling fan | | Impedance: | Input: 20 kOhm , bal.
Input: 10 kOhm , unbal. | | Circuitry: | Class H | | Slew rate: | >10 V/µs | | Damping factor: | >200 | | Control elements: | Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch | | Controls: | Short-circuit; overheat; DC voltage; power on/off transients; softstart; power on/off transient | | Status LED: | Power, level meter, clip, bridged, protect | | Connections: | Input: line via 2 x 3-pin XLR
Input: line via 1 x stereo RCA
Output: speaker via 2 x speaker built-in socket (F)
Output: speaker via screw terminal | | Input sensitivity: | 0,775 V; 1,4 V , switchable | | Housing design: | (19") 48.3 cm rack installation 2 U | | Dimensions: | Width: 48,3 cm
Depth: 41,5 cm
Height: 8,9 cm | | Weight: | 15,70 kg |

| | |
