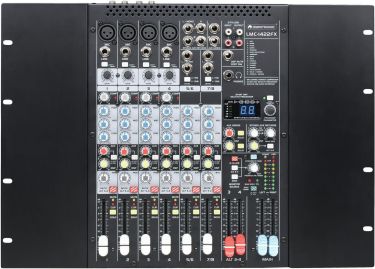

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | | | Omnitronic LMC-1422FX USB Mixing Console 10A17G58 | 10040280
Delivery time: 4-8 workdays. | Butikkens adresse og åbningstid er: | DiscoWorld
Møllehaven 9
4040 Jyllinge - vis på kort | Butik og Telefon
Tirsdag, Onsdag og Fredag | 10.00 til 17.30 | Lager og vareudlevering
Mandag, tirsdag, onsdag
torsdag og fredag | 09:00 til 17:30 | |
| |
| | Har du brug for hjælp eller rådgivning inden du bestiller? | | Så ring gerne til vores venlige og kompetente sælger Christian Høegh direkte på hans mobil 20832425, Alle ugens 7 dage fra 09:00 til 20:00 | |
|
| |
| |
| | PRO audio mixer with British-style EQ, compressor, effect unit and USB interface Professionelles Audiomischpult mit British-style EQ, Kompressor, Effekteinheit und USB-Schnittstelle - 4 mono input channels with gain control, 3-way EQ, low cut and pan control
- 2 stereo input channels with 3-way EQ, level selection and balance control
- State-of-the-art, low-noise mic preamps with 130 dB dynamic range and high headroom
- Exceptional British EQs for warm and musical sound
- Studio-grade compressors with easy one-knob functionality and control LED on each mono channel
- 24-bit DSP FX unit with 16 editable presets, tap function and storable user parameter settings
- Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
- 2 AUX sends per channel: AUX 1 pre/post-fader switchable for monitoring/FX applications, AUX 3 post fader for internal FX
- ALT 3-4 stereo bus with separate faders and outputs for added routing flexibility
- 2 stereo AUX returns with flexible routing
- Clip LEDs and routing switches for mute and solo/PFL on all channels
- Balanced main mix outputs with gold-plated XLR connectors
- Control room/phones outputs with multi-input source matrix
- CD/tape input assignable to main mix or control room/phones outputs, CD/tape output
- Precise 8-digit LED level meter
- FX mute with remote control via footswitch
- +48 V phantom power, can be switched centrally
- Monochrome 2 digit 7-segment LED display
- The device can be connected via USB to the PC
- (19) 48.3 cm rack installation possible
- 1 x mixer, 1 x user manual, 1 x power cord, 1 x uSB cable, 2 x angle
| Power supply: | 100-240 V AC, 50/60 Hz | | Power consumption: | 50 W | | Protection class: | Protection class I | | Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) | | Frequency range: | 20 - 20000 Hz | | S/N ratio: | >110 dB | | THD: | <0,05 % at 1 kHz | | DSP: | Digital signal processor 24 bit with 16 effects | | Phantom power: | 48 V DC | | Impedance: | Input: Microphone 2,6 kOhm , bal.
Input: line 10 kOhm , bal.
Input: 2-Track 10 kOhm
Input: AUX returns 10 kOhm , bal. | | Gain: | Input: variable | | Housing color: | Black | | Crosstalk: | >89 dB | | Display type: | Monochrome 2 digit 7-segment LED display | | Control elements: | Encoder, power switch, phantom power switch | | Status LED: | Master level meter, clip, Mute, Gain reduction, phantom power; power, clip, level meter, phantom power, Mute | | Connections: | Input: Microphone via 4 x 3-pin XLR
Input: line via 8 x 6.3 mm jack socket (mono) mounting version
Input: 2-Track via 1 x stereo RCA
Output: master via 2 x 3-pin XLR
Output: sub groups via 2 x 6.3 mm jack socket (mono) mounting version
Output: control room via 2 x 6.3 mm jack socket (mono) mounting version
Output: AUX sends via 2 x 6.3 mm jack socket (mono) mounting version
Output: AUX returns via 4 x 6.3-mm-jack (bal.)
Output: rec. via 1 x stereo RCA
Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version | | Channels: | Input chanel: 4 x mono via XLR or jack, channel control via 60mm fader, 3-band tone control EQ ±15dB at 80Hz/2,5kHz/12kHz, 2 Send/AUX, pre-post switch, gain control, low cut switch, adjustable single-knob compressor, Routing Sub group bus switch, panoramacontol, Mute control, solo switch,
Input chanel: 2 x stereo via Jack, channel control via 60mm fader, 3-band tone control EQ ±15dB at 80Hz/2,5kHz/12kHz, 2 Send/AUX, pre-post switch, Input sensitivity switch, Routing Sub group bus switch, balancecontrol, Mute control, solo switch, low cut switch,
Master output: 1 x stereo, channel control via 60mm fader | | Crossover frequency: | High-pass 75 Hz, 18db/oct | | Max. level: | Output: master +28 dBu, bal.
Output: control room +22 dBu, unbal.
Output: AUX sends +22 dBu, unbal.
Output: rec. +22 dBu
Output: headphones +19 dBu, unbal.
Output: sub groups +22 dBu, unbal. | | USB port: | Typ B | | PC connect: | Via USB | | Housing design: | (19") 48.3 cm rack installation possible | | Dimensions: | Width: 48,3 cm
Depth: 40 cm
Height: 12,7 cm | | Weight: | 4,70 kg |
  | | |
