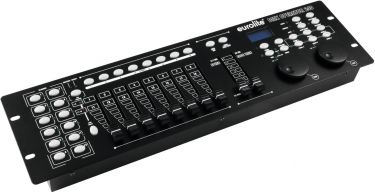

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | | | Eurolite DMX Operator 240 Controller 10A24B81 | 70064518
Delivery time: 4-8 workdays. | Butikkens adresse og åbningstid er: | DiscoWorld
Møllehaven 9
4040 Jyllinge - vis på kort | Butik og Telefon
Tirsdag, Onsdag og Fredag | 10.00 til 17.30 | Lager og vareudlevering
Mandag, tirsdag, onsdag
torsdag og fredag | 09:00 til 17:30 | |
| |
| | Har du brug for hjælp eller rådgivning inden du bestiller? | | Så ring gerne til vores venlige og kompetente sælger Christian Høegh direkte på hans mobil 20832425, Alle ugens 7 dage fra 09:00 til 20:00 | |
|
| |
| |
| | Console for 12 lighting effect units with up to 20 DMX channels, 2 jog wheels Pult für 12 Geräte (jeweils max. 20 DMX-Kanäle), mit 2 Jogwheels - DMX controller for 12 lighting effect units such as moving heads, scanners and LED spot lights
- 12 fixtures with up to 20 channels each can be controlled
- 240 DMX channels can be assigned and inverted as desired to 20 control channels (softpatch)
- USB port for storing program data
- Manual, time-controlled or sound-controlled chase running mode
- Fade between scenes adjustable between 0-30 s
- Copy function for scenes and banks
- 2 DMX fixture levels can be controlled, each with up to 10 channels
- 8 DMX channel faders
- 2 jog wheels for pan/tilt
- Blackout function
- Fog machine control possible
- Supports standard MIDI
- Firmware update via USB
- Programmable 30 sequencens each with 8 scenes
- Programmable 6 chasers each with max. 240 scenes
- Can transmit up to 240 DMX channels
- Control via DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version; MIDI via 5-pin DIN (F) mounting version; Fog machine via 5-pin DIN (F) mounting version; RDM
- (19) 48.3 cm rack installation 3 U
- Desktop console housing
- For application areas such as: Party room; small rental
- Silent operation
- 1 x controller, 1 x external mains adapter, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz
9 V DC | | Power consumption: | 2,70 W | | IP classification: | IP20 | | Protection class: | Protection class III | | Power connection: | Mains input via 2-pin screw plug connector (M) mounting version power supply cord with AC adapter (provided) | | Programs: | Programmable
30 Sequences
Each with 8 Scenes
Programmable 6 Chasers
Each with max. 240 Scenes | | DMX channels: | Output 240 | | DMX output: | 1 x 3-pin XLR (F) mounting version | | Control: | DMX; Sound to light via Microphone; Sound to light via RCA (F) mounting version; MIDI via 5-pin DIN (F) mounting version; Fog machine via 5-pin DIN (F) mounting version; RDM | | Housing color: | Black | | Control elements: | DMX polarity selector, power switch | | Available storage media: | USB devices (FAT 32) | | USB port: | Typ A | | Color: | Black | | Housing design: | (19") 48.3 cm rack installation 3 U
Desktop console housing | | Dimensions: | Width: 48,3 cm
Depth: 13,5 cm
Height: 8,9 cm | | Weight: | 2,23 kg | | Noise classification: | Class 0 (no noise at all) |
   | | |
