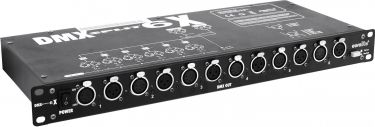

Splitter with 6 galvanically isolated outputs, 3-pin & 5-pin XLR sockets Splitter auf 6 galvanisch getrennte Ausgänge, 3-polige & 5-polige XLR-Buchsen - DMX splitter for splitting one DMX input signal to 6 DMX outputs
- Input and outputs galvanically isolated
- Input and outputs with a set of respective power supply and internal fuse
- Each DMX output with independent driver and status indicator
- (19) 48.3 cm rack installation 1 U
- 1 x device, 1 x user manual
| Power supply: | 230 V AC, 50 Hz | | Power consumption: | 35 W | | Power connection: | Fixed power supply cord with safety plug | | DMX input: | 1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version | | DMX output: | 6 x 3-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator
6 x 5-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator
1 x 5-pin XLR (F) mounting version Bypass
1 x 3-pin XLR (F) mounting version Bypass | | Control elements: | Bypass/terminating resistor switch, power switch | | Housing design: | (19") 48.3 cm rack installation 1 U | | Dimensions: | Width: 48,3 cm
Depth: 20 cm
Height: 4,45 cm | | Weight: | 3,31 kg |
   |
