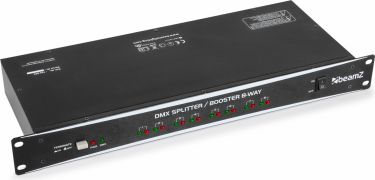

The DMX splitter booster is a 19” single rack space, 8-way DMX distributor/booster with 3-pin XLR input and output jacks. This unit takes the incoming DMX signal and splits it to eight (8) separate outputs. This greatly decreases problems with ground loops and efficiently buffers and magnifies the DMX signal, making it more accurate and reliable. All outputs include 3-pin XLR sockets, which are electronically isolated from each other to ensure uninterrupted data. In addition, each output has dedicated drivers to boost the incoming signal. - DMX-512 control
- 3pin XLR Isolated Input
- 3pin XLR Passive Loop Output
- 3pin XLR Isolated 8 Outputs
- On/Off Power Switch
- 120 Ohm terminating resistor
| Product colour | Black | | DMX connection | 3-pin XLR | | Power supply | 220-240VAC 50Hz | | Dimensions (L x W x H) | 185 x 482 x 55mm | | Weight (kg) | 2,30 |
