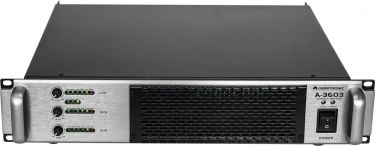

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | | | Omnitronic A-3603 Class-D 2.1 Amplifier 10A14A98 | 10452370
Delivery time: 4-8 workdays. | Butikkens adresse og åbningstid er: | DiscoWorld
Møllehaven 9
4040 Jyllinge - vis på kort | Butik og Telefon
Tirsdag, Onsdag og Fredag | 10.00 til 17.30 | Lager og vareudlevering
Mandag, tirsdag, onsdag
torsdag og fredag | 09:00 til 17:30 | |
| |
| | Har du brug for hjælp eller rådgivning inden du bestiller? | | Så ring gerne til vores venlige og kompetente sælger Christian Høegh direkte på hans mobil 20832425, Alle ugens 7 dage fra 09:00 til 20:00 | |
|
| |
| |
| | 3-channel PA amplifier with crossover network - 4 ohms: 1 x 2000 W, 2 x 800 W 3-Kanal-PA-Verstärker mit Frequenzweiche - 4 Ohm: 1 x 2000 W, 2 x 800 W - 3-channel PA amplifier with class D circuitry and switch mode power supply
- Adjustable crossover frequency for satellites and subwoofer
- 2.1 operation or 3-channel operation selectable
- 3 level controls
- LED VU meter and LEDs for activated protective circuit (protect) and overload (clip) per channel
- Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
- Speaker outputs via lockable Speaker plugs
- Rugged steel chassis with aluminum front panel
- (19) 48.3 cm rack installation 2 U
- 1 x amplifier, 1 x user manual, 1 x power cord, 4 x foot, 4 x screw
| Power supply: | 100-240 V AC, 50/60 Hz | | Power consumption: | 685 W 1/8 power | | Output power: | 2 x 800 W RMS (4 ohms)
2 x 400 W RMS (8 ohms)
1 x 2000 W RMS (4 ohms)
1 x 1000 W RMS (8 ohms) | | Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) | | Frequency range: | 20 - 20000 Hz | | S/N ratio: | >100 dB | | THD: | <0,003 % at 1 kHz | | Impedance: | Input: 20 kOhm , bal.
Input: 10 kOhm , unbal. | | Gain: | Chanal 1 26 dB
Chanal 2 26 dB
Chanal 3 32 dB | | Circuitry: | Class D | | Slew rate: | >10 V/µs | | Damping factor: | >500 | | Control elements: | Power switch, level control per channel, mode switch (2/3 channels), crossover frequency | | Status LED: | Protect, clip, level meter, bridged | | Connections: | Input: line via 3 x 3-pin XLR
Link: line via 3 x 3-pin XLR
Output: speaker via 3 x speaker built-in socket (F) | | Housing design: | (19") 48.3 cm rack installation 2 U | | Dimensions: | Width: 48,3 cm
Depth: 41 cm
Height: 8,9 cm | | Weight: | 9,10 kg |


| | | | |
