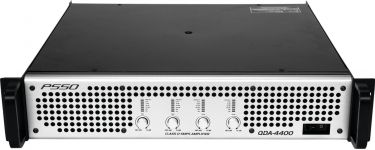

| | Class D multi-channel PA amplifier with SMPS, 4 x 1100 W RMS (4 ohms), 4 x 650 W RMS (8 ohms) Verstärker mit Schaltnetzteil, 4 x 1100 W / 4 Ohm, 4 x 650 W / 8 Ohm - 4-channel PA amplifier with class D circuitry
- Low weight and height due to integrated switch mode power supply
- Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, concerts)
- 3 operating modes can be selected (stereo, parallel or bridged)
- Level control per channel
- Input sensitivity adjustable
- LED VU meter and LEDs for activated protective circuit (protect) and overload (clip) per channel
- Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
- Speaker outputs via lockable Speaker plugs
- Rugged steel chassis with aluminum front panel
- Highly efficient Air flow from front to rear
- The device is cooled by temperature-controlled fan
- (19) 48.3 cm rack installation 2 U
- 1 x amplifier, 1 x power cord, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz | | Power consumption: | 830 W 1/8 power | | Output power: | 4 x 1100 W RMS (4 ohms)
4 x 650 W RMS (8 ohms)
2 x 2000 W RMS bridged (8 ohms) | | Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) | | Frequency range: | 20 - 20000 Hz | | S/N ratio: | >100 dB | | THD: | <0,1 % at 1 kHz | | Cooling: | 2 x temperature-controlled fan , Air flow from front to rear | | Impedance: | Input: 20 kOhm , bal.
Input: 10 kOhm , unbal. | | Gain: | 39,9 dB | | Circuitry: | Class D | | Slew rate: | >10 V/µs | | Damping factor: | >500 | | Crosstalk: | >65 dB | | Control elements: | Power switch, mode switch (stereo/parallel/bridged), level control per channel, Input sensitivity switch | | Controls: | Softstart; overheat; overload; short-circuit; progressive volume; VHF; limiter | | Status LED: | Power, level meter, clip, protect | | Connections: | Input: line via 4 x 3-pin XLR
Output: line via 4 x 3-pin XLR
Output: speaker via 4 x speaker built-in socket (F) | | Input sensitivity: | 0,775 V; 1,0 V; 1,81 V , switchable; 32 dB; 37 dB; 39,3 dB , switchable | | Housing design: | (19") 48.3 cm rack installation 2 U | | Dimensions: | Width: 48,3 cm
Depth: 46,1 cm
Height: 8,9 cm | | Weight: | 9,50 kg |
   | | |
