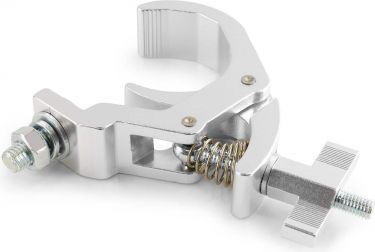

This Quick Trigger clamp is constructed from die casting aluminium and suitable for pipe and truss mounting fixtures. Featuring a jaw opening for a wider range of different tube systems. The handle of the Quick Trigger clamp is situated in the easily accessible horizontal position, leaving user to fasten the coupler without across the truss brace. Ergonomic big handle protects user's palm from the obstructive bolt. - Heavy duty aluminium clamp
- Self Lock
| Product colour | Aluminium | | Material | Aluminum | | D1 (1mm) | 92mm | | D2 (1mm) | 38 - 51mm | | D3 (1mm) | 10mm | | D4 (1mm) | 59mm | | W (1mm) | 25mm | | Threaded Bolt | M10 | | Max. weight load per piece | 50kg | | Weight (kg) | 0,23 |

   |
