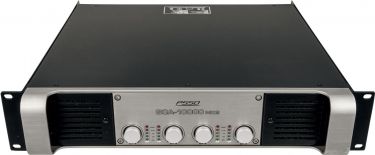

PSSO QCA-10000 MK2 4-Channel SMPS Amplifier

10B01C97

~~19.199,00DKK~~ 15.759,00DKK

The price includes 25% Danish VAT

Delivery time: 4-8 workdays.

Butikkens adresse og åbningstid er:

DiscoWorld
Møllehaven 9
4040 Jyllinge - vis på kort

Butik og Telefon Tirsdag, Onsdag og Fredag	10.00 til 17.30
Lager og vareudlevering Mandag, tirsdag, onsdag torsdag og fredag	09:00 til 17:30

Har du brug for hjælp eller rådgivning inden du bestiller?
Så ring gerne til vores venlige og kompetente sælger Christian Høegh direkte på hans mobil 20832425, Alle ugens 7 dage fra 09:00 til 20:00

PA amplifier with SMPS, 4 x 2500 W / 2 ohms, 4 x 2100 W / 4 ohms

4-channel PA amplifier with class I circuitry
Low weight and height due to integrated switch mode power supply
Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, concerts)
3 operating modes can be selected (stereo, parallel or bridged)
Level control per channel
Input sensitivity adjustable
LED VU meter and LEDs for activated protective circuit (protect) and overload (clip) per channel
Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
Speaker outputs via lockable Speaker plugs
Rugged steel chassis with aluminum front panel
Highly efficient Air flow from front to rear
The device is cooled by temperature-controlled fan
Built with NEUTRIK connector
(19) 48.3 cm rack installation 2 U
1 x amplifier, 1 x cover, 4 x foot, 1 x user manual

Power supply:	230 V AC, 50 Hz
Power consumption:	1150 W 1/8 power
Output power:	4 x 2500 W RMS (2 ohms) 4 x 2100 W RMS (4 ohms) 4 x 1300 W RMS (8 ohms) 2 x 5000 W RMS bridged (4 ohms) 2 x 4200 W RMS bridged (8 ohms)
Power connection:	Fixed power supply cord with safety plug
Frequency range:	20 - 20000 Hz
S/N ratio:	>80 dB
THD:	<0,05 % at 1 kHz
Cooling:	3 x temperature-controlled fan , Air flow from front to rear
Impedance:	Input: 10 kOhm , unbal. Input: 20 kOhm , bal.
Gain:	40,3 dB/ 0,775 V 38 dB/ 1,0 V 35,1 dB/ 1,4 V
Circuitry:	Class I
Slew rate:	>10 V/µs
Damping factor:	>800
Crosstalk:	>65 dB
Control elements:	Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch
Controls:	Overheat; overload; short-circuit; softstart; DC voltage; VHF
Status LED:	Power, level meter, clip, protect
Connections:	Input: line via 4 x 3-pin XLR (F) mounting version Output: line via 4 x 3-pin XLR (M) mounting version Output: speaker via 4 x speaker built-in socket (F)
Input sensitivity:	0,775 V; 1,0 V; 1,4 V , switchable; 26 dB; 32 dB; 38 dB , switchable
Use of brands:	Built with NEUTRIK connector
Housing design:	(19") 48.3 cm rack installation 2 U
Dimensions:	Width: 48,3 cm Depth: 44,5 cm Height: 8,9 cm
Weight:	13,90 kg
