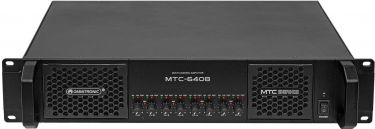

 | Categories |  | |  | Manufacturers | | | | | | Information | | | | | | | | Omnitronic MTC-6408 8-Channel Amplifier 10B05D37
Delivery time: 4-8 workdays. | Butikkens adresse og åbningstid er: | DiscoWorld
Møllehaven 9
4040 Jyllinge - vis på kort | Butik og Telefon
Tirsdag, Onsdag og Fredag | 10.00 til 17.30 | Lager og vareudlevering
Mandag, tirsdag, onsdag
torsdag og fredag | 09:00 til 17:30 | |
| |
| | Har du brug for hjælp eller rådgivning inden du bestiller? | | Så ring gerne til vores venlige og kompetente sælger Christian Høegh direkte på hans mobil 20832425, Alle ugens 7 dage fra 09:00 til 20:00 | |
|
| |
| |
| | Class D multi-channel PA amplifier with SMPS, 8 x 800 W RMS (4 ohms), 8 x 400 W RMS (8 ohms) - Extremely low weight and height due to integrated switch mode power supply
- 2 operating modes can be selected (stereo or bridge/100V)
- Level control per channel
- (19) 48.3 cm rack installation 2 U
- Highly efficient Air flow from front to rear
- The device is cooled by temperature-controlled fan
- 1 x amplifier, 1 x power cord, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz | | Power consumption: | 1200 W 1/8 power | | Protection class: | Protection class I | | Output power: | 8 x 800 W RMS (4 ohms)
8 x 400 W RMS (8 ohms)
Bridged (8 ohms)
4 x 1500 W RMS
8 x 200 W RMS (100 V)
4 x 1500 W RMS bridged (100 V) | | Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) | | Cable length: | 1 m | | Device fuse: | 5 x 20 mm, T 10 A Fuse fix on board | | Frequency range: | 20 - 20000 Hz | | S/N ratio: | >119 dB | | THD: | <0,05 % at 1 kHz | | Cooling: | 2 x temperature-controlled fan , Air flow from front to rear | | Impedance: | Input: 20 kOhm , bal.
Input: 10 kOhm , unbal. | | Gain: | 28,2 dB
Bridged 34,2 dB | | Housing color: | Black | | Circuitry: | Class D | | Damping factor: | 350 | | Control elements: | Power switch, level control per channel, mode switch (stereo/bridged) | | Controls: | Softstart; overheat; overload; short-circuit; DC voltage | | Status LED: | Power, signal, clip, bridged, protect | | Connections: | Input: line via 8 x 3-pin XLR
Link: line via 8 x 3-pin XLR
Output: speaker via 6 x screw plug-in terminal
Output: 8 x speaker built-in socket (F) | | Housing design: | (19") 48.3 cm rack installation 2 U | | Dimensions: | Width: 48,3 cm
Depth: 40,8 cm
Height: 8,8 cm | | Weight: | 9,42 kg |

 | | | | |
