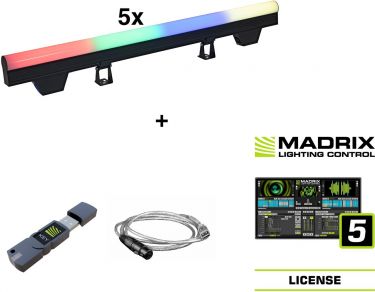

Eurolite Set 5x LED PT-100/32 Pixel DMX Tube + Madrix Software

10B00D64

~~15.199,00DKK~~ 12.599,00DKK

The price includes 25% Danish VAT

Delivery time: 4-8 workdays.

Butikkens adresse og åbningstid er:

DiscoWorld
Møllehaven 9
4040 Jyllinge - vis på kort

Butik og Telefon Tirsdag, Onsdag og Fredag	10.00 til 17.30
Lager og vareudlevering Mandag, tirsdag, onsdag torsdag og fredag	09:00 til 17:30

Har du brug for hjælp eller rådgivning inden du bestiller?
Så ring gerne til vores venlige og kompetente sælger Christian Høegh direkte på hans mobil 20832425, Alle ugens 7 dage fra 09:00 til 20:00

DMX and power terminals intelligently designed for easy wiring
96 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix) 32 segments controlled separately
Color change adjustable; Dimmer electronic
Strobe effect
Integrated show programs
Direct color selection for 17 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; DMX; Sound to light via Microphone; Master/slave function
With a beam angle of 120°
With Mounting bracket
4 digit 7-segment LED display
Preprogrammed in LED PC-Control 512; Light Captain
Silent operation
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; Trade fair and shop fitting; Stage; restaurants, bars and hotels
Application possibility: Suspended; Wall mounting
1 x light effect, 1 x user manual, 1 x power cord
Includes 1x MADRIX 5 License start
Requires a valid, empty, and metallic MADRIX KEY
Compatible with Win 7, Win 8, Win 10,
Made in Germany
Engineered in Germany
For further information about this product, please refer to the Data Sheet under Downloads
Can receive and process up to 512 DMX channels
Can transmit up to 512 DMX channels
Control via DMX
Built with NEUTRIK connector
The device can be connected via USB to the PC in connection with MADRIX software
Compatible with Win 7, Win 8, Win 10,
Made in Germany
Engineered in Germany
For application areas such as: Clubs/dancing school; Installation; Stage; restaurants, bars and hotels
Includes an empty MADRIX KEY
Requires a proper MADRIX 5 License to activate the features or output for the MADRIX 5 Software
The device can be connected via USB to the PC
Made in Germany

Weight:	10,67 kg
EUROLITE LED PT-100/32 Pixel DMX Tube
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	30 W
IP classification:	IP20
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	1 x P-Con (gray), mounting version
Lamp type:	LED lamp
LED:	96 x SMD 5050 3in1 TCL RGB (homogenous color mix)
Flash rate:	20 Hz
DMX channels:	3; 5; 8; 48; 96
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	Stand-alone; DMX; Sound to light via Microphone; Master/slave function
Preprogrammed in:	LED PC-Control 512; Light Captain
Beam angle:	120°
Beam angle (1/2 peak):	120°
Housing color:	Black
Attachment system:	Mounting bracket
Display type:	4 digit 7-segment LED display
Dimensions:	Length: 99,9 cm Width: 5,9 cm Height: 15,3 cm
Weight:	2,10 kg
Noise classification:	Class 0 (no noise at all)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
MADRIX Software 5 License start
Weight:	0 g
Operating system:	Win 7, Win 8, Win 10,
MADRIX USB ONE DMX512 USB interface
Power supply:	5 V DC 500 mA
Power connection:	Fixed power supply cord for USB A mains connection
DMX channels:	Input 512 Output 512
DMX output:	1 x 5-pin XLR (F)
Control:	DMX
USB port:	USB 2.0, Typ A
Use of brands:	Built with NEUTRIK connector
PC connect:	MADRIX software via USB
Weight:	100 g
MADRIX KEY
Power connection:	Mains input via USB A (M) connectable version
USB port:	Typ A
PC connect:	Via USB
Weight:	70 g
