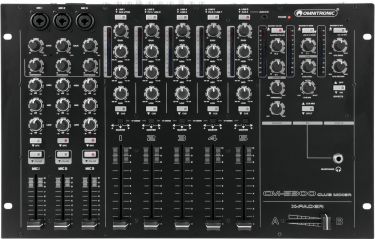

| | PRO 5-channel club mixer Professioneller 5-Kanal-Club-Mixer - High-grade stereo mixer for clubs and numerous mobile PA applications
- 5 stereo input channels with gain control, 3-band kill EQ (+12/ -26 dB) and 10-digit LED level meter
- Front panel AUX input
- Rear stereo input FOH for stage mixers
- Smooth dual-rail channel input faders (60 mm/100 mm)
- 3 microphone input channels with front combo connector
- Gain control, peak LED, 3-band EQ and on air switch per microphone channel
- One-knob compressor per microphone channel
- 2-parameter adjustable auto talkover for automatic music level reduction when microphone is used
- Fully assignable smooth dual-rail crossfader (45 mm)
- Master section with two separately controllable stereo outputs, output 2 switchable to mono
- 10-digit stereo LED level meter, switchable between both master outputs
- Balanced XLR and RCA outputs
- Additional mono zone output (with switchable 80Hz HPF) which can be routed to the master bus or channel 5
- 10-digit LED level meter for the zone output
- Mono subwoofer output with integrated active crossover (frequency/level adjustable)
- All outputs with rear-side maximum level setting controls
- Adjustable effects send/return path, assignable to mic or master bus
- PFL section with PFL/master mix control and cue mix/split option
- Record output, independent of the master
- (19) 48.3 cm rack installation 7 U
- 1 x mixer, 1 x power cord, 1 x user manual
| Power supply: | 115/230 V AC, 50/60 Hz | | Power consumption: | 25 W | | Protection class: | Protection class I | | Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) | | Frequency range: | 20 - 20000 Hz | | S/N ratio: | >82 dB line | | THD: | Line <0,05 % at 1 kHz | | Control elements: | Cue mix split function, power switch, Crossfader, regular talkover, FX send/returne control | | Status LED: | Power, chanal level meter, switchable master level meter, CUE, chanal source; peak, ON AIR, Routing | | Connections: | Input: Microphone via 3 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 6 x stereo RCA
Input: line/phono via 2 x stereo RCA
Input: AUX via 2 x 6.3-mm-jack (bal.)
Input: AUX via 1 x 3.5 mm jack (stereo) mounting version
Input: FX via 1 x 6.3 mm jack socket (stereo) mounting version
Output: master via 4 x 3-pin XLR
Output: master via 2 x stereo RCA
Output: zones via 1 x 3-pin XLR
Output: rec. via 1 x stereo RCA
Output: Subwoofer via 1 x 3-pin XLR
Output: FX via 1 x 6.3 mm jack socket (stereo) mounting version
Output: headphones via 1 x 3.5 mm jack (stereo) mounting version | | Channels: | Input chanel: 2 x stereo with Line-AUX switch via RCA or jack plug, channel control via 100mm fader, 3-band tone control EQ, gain control, CUE switch, Crossfader selector switch,
Input chanel: 2 x stereo with Line-Line/Phono switch via RCA, channel control via 100mm fader, 3-band tone control EQ, gain control, CUE switch, Crossfader selector switch,
Input chanel: 1 x stereo with Line-line switch via RCA, channel control via 100mm fader, 3-band tone control EQ, gain control, CUE switch, Crossfader selector switch,
Microphon chanal: 3 x mono via Combination socket (XLR/jack), channel control via 60mm fader, 3-band tone control EQ, gain control, adjustable single-knob compressor, ON AIR switch, FX routing switch
Master output: 1 x stereo via XLR or RCA, channel control via Rotary dial, Level attenuator,
Master output: 1 x mono + stereo via RCA or jack plug, channel control via Rotary dial, Level attenuator, stereo/mono switch,
Zone output: 1 x mono via XLR, channel control via Rotary dial, source selector, Level attenuator, low cut switch,
Subwoofer output: 1 x mono via XLR, Level attenuator, hi-cut control,
Headphones output: 1 x stereo via Jack, channel control via Rotary dial, Cue mix split function, | | Housing design: | (19") 48.3 cm rack installation 7 U | | Dimensions: | Width: 48,3 cm
Depth: 10,6 cm
Height: 32,8 cm | | Weight: | 6,00 kg |

  | | |
